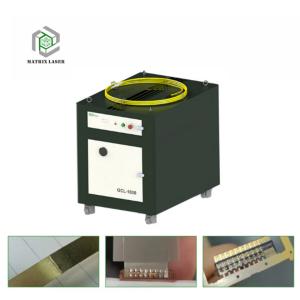

High-Power Green Fiber Laser for Welding and Cutting High Reflective Materials

Name: HighPower Green Fiber Laser for Welding and Cutting High Reflective Materials
Brand: GD laser
Price: 1 USD

Brand Name : GD laser

Model Number : EO-LIGHT-CW-2

Certification : CE

Place of Origin : SHENZHEN, CHINA

MOQ : 1 set

Price : price negotiable

Payment Terms : D/P, L/C

Supply Ability : 100 sets/month

Delivery Time : 20 work days

Packaging Details : Wooden case packing, 1 set/box

Average power : 3000W

Working mode : Continuous/modulation

Polarization state : random

Central wavelength : 529Nm

Modulation frequency : 20kHz

Long term power stability : -1.5%

extinction ratio : 15dB

Output head : QBH

Core diameter : 200um

working voltage AVC : 380v

Maximum power consumption : 23kw

Cabinet size : 1600*1600*1800mm

Refrigeration mode : water-cooling

Cooling water flow rate : 50L/min

Contact Now

Product introduction

Gongda Laser has launched a high-power continuous green laser to solve problems such as severe splashing during welding of high reflectivity materials in the infrared band, using a scheme of all fiber fundamental frequency and external cavity doubling. With an output power of up to 3000W, it is currently the highest power continuous green laser source in China. It has advantages such as high repeatability, high absorption rate, less splashing, high stability, and high beam quality.

Product features

1.Laser welding of high reflective materials (copper/aluminum);
2.Semiconductor material processing (silicon carbide, etc);
3.3D printing and cladding of copper metal;
4.Superhard material cutting;
5.Welding of power battery busbars, connecting pieces, etc.

Product application

1. Cutting and welding of high reaction materials such as copper

2. Copper metal 3D printing

High-Power Green Fiber Laser for Welding and Cutting High Reflective Materials

Technical parameter

NO.	Characteristic	Unit	Min.	Typ.	Max.
1	Average power	W	3000	3050
2	Working mode	-	Continuous /modulation
3	Polarization state	-	random
4	Central wavelength	Nm	529	532	535
5	Modulation frequency	kHz			20
6	Long term power stability	%	-1.5		﹢1.5
7	extinction ratio	dB	15
8	Bundle quadrature BPP	mm*mrad	8
9	Beam quality	%	90	95	100
10	Output head		QBH
11	Core diameter	um	200
12	working voltage AVC	V	380
13	Maximum power consumption	KW	23
14	Cabinet size	mm	160016001800
15	Refrigeration mode		water-cooling
16	Cooling water temperature	℃	23	24	25
17	Cooling water flow rate	L/min	50
18	Cooling water interface		∅33mm

Product size

High-Power Green Fiber Laser for Welding and Cutting High Reflective Materials
